What happens if two devices share the same Node Address on DeviceNet?

Duplicate node addresses are not allowed on DeviceNet. If two devices share the same address, the network will experience a communication fault and the devices will not operate correctly.

What is the correct resistance for DeviceNet termination?

DeviceNet requires a 121‑ohm termination resistor at each end of the trunkline, installed at the ends of the cable that are not connected to a device.

Can you use an Ethernet cable for DeviceNet?

No. DeviceNet requires industrial‑grade shielded twisted‑pair fieldbus cable designed for both power and communication. Ethernet cable does not meet DeviceNet electrical or shielding requirements.

What does a solid red error light on DeviceNet indicate?

A solid red indicator typically means a critical fault such as power loss or a duplicate node address on the network.

What are Electronic Data Sheet (EDS) files?

EDS files are standardized text files that describe a device’s capabilities, parameters, and communication settings. If an EDS file is missing, RSLinx may display a red X or show the device as a generic icon.

Who developed DeviceNet?

DeviceNet was originally developed by Rockwell Automation.

How does DeviceNet differ from Ethernet?

Both DeviceNet and Ethernet use the Common Industrial Protocol (CIP), but Ethernet is significantly faster and supports modern network topologies. DeviceNet delivers both power and communication over the same cable and commonly uses a trunkline‑dropline topology, while Ethernet uses star, ring, or linear topologies and requires separate power.

Which should I use, DeviceNet or Ethernet?

Most new installations use Ethernet due to its speed, scalability, and integration with plant networks. DeviceNet remains common in legacy systems and will continue to be supported for many years.

What is the best way to learn DeviceNet?

The Koldwater DeviceNet Training Course provides an interactive, hands‑on way to learn DeviceNet fundamentals, making it an excellent beginner‑friendly tutorial.

DeviceNet Training Course — DeviceNet Tutorial Software

Hands‑On DeviceNet Basics, Cabling, Power Supplies, Grounding & Troubleshooting (20 hours est.)

This DeviceNet Training Course teaches the fundamentals of DeviceNet networks including cable identification, physical media, power supplies, grounding, wiring, and troubleshooting. You’ll learn how DeviceNet systems are structured, how to diagnose common issues, and how to apply best practices for reliable industrial networking.

This DeviceNet course is an excellent supplement to PLC and automation training and is widely used by tech schools, colleges, company training departments, and apprenticeship programs.

Course Topics Include:

What is DeviceNet
DeviceNet Cable & Component Identification

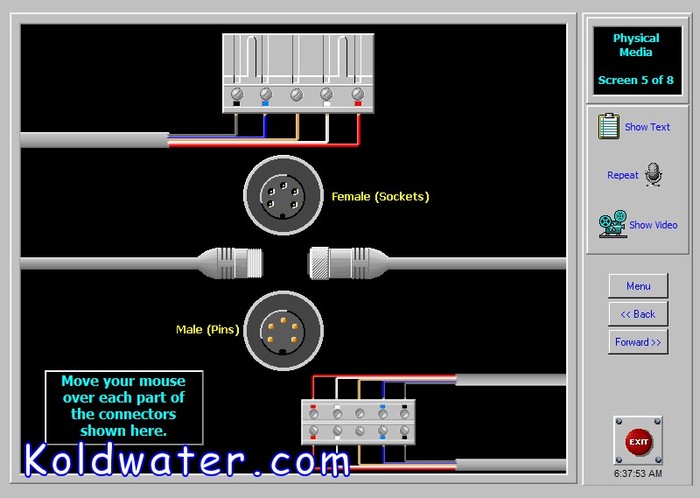

Physical Media

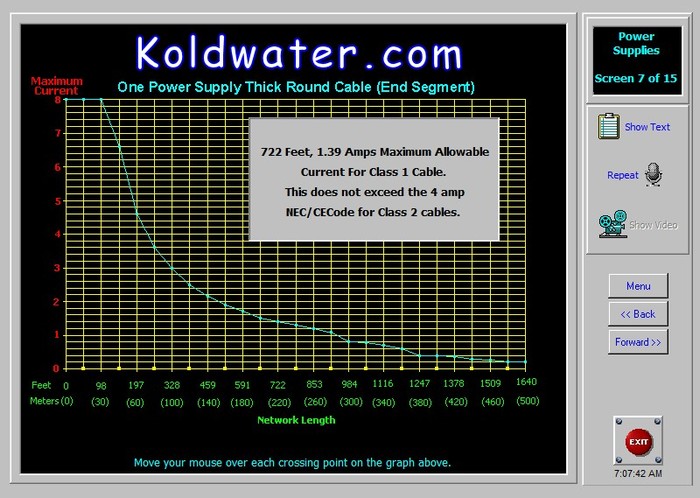

Power Supplies
DeviceNet Cable and Wiring
Grounding
DeviceNet Troubleshooting
Tips & Tricks
Glossary
DeviceNet PDF Laboratory Manual
Interactive Quiz, Final Exam & Certificate of Completion

DeviceNet Training — sample lesson from the DeviceNet course.

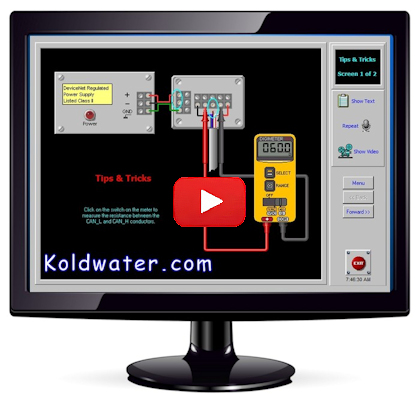

DeviceNet Training Software Example

DeviceNet interface examples — Click to zoom in.

View DeviceNet Course Details
Opens full DeviceNet course details in a new window.

Order Now

Your order will be processed by our parent company, Business Industrial Network (BIN95.com). Download/activation information is emailed within 24 hours for digital versions.

Digital Download

License Types:

Student License – 1 learner may take the course.

Site License – Unlimited installs at a single physical location.

Enterprise License – Unlimited Site Licenses across multiple locations. (Request Quote)

Site and Enterprise licenses include a mini LMS for progress tracking.

This DeviceNet course is the recommended next step after completing other courses in the Automation Specialist Training course bundle.

For instructions on purchasing by Purchase Order, contact sales @ koldwater.com

This DeviceNet course is part of the recommended curriculum at PLC‑Training.org.
