VFD Basics Training

The VFD Trainer uses Allen Bradley VFD Powerflex as example.

This VFD Basics training software uses the Allen Bradley VFD Powerflex, the variable frequency drive basics taught can be applied to ABB VFD, Siemens VFD, or any other brand's VFD working principle. They all operate on the same basic variable frequency drive theory. This variable frequency drive basics training software is interactive and has real-world simulations.
Simulates Allen Bradley VFD Powerflex HMI, requiring the user to go through tasks, step by step.
The VFD Basics Training (VFDTrainer) Software includes the following units of instruction.
  • AC Motor Basics
  • Variable Frequency Drive Basics
  • VFD Working Principle and Operation
  • VFD Control
  • VFD Installation
  • VFD Start-up
  • Soft Starter working principle
  • Troubleshooting VFD Drives
[Tap/click on pictures below to view]
This VFD basics training software also includes ...
-- Final Exam
-- Laboratory Manual
-- Password protected Student Log File (with Site and Enterprise License)
-- Ability to print Certificate of Completion
-- Ability to print test responses (with Site and Enterprise License)
The first section of the VFD Basics training software starts with AC Motor Basics. Here you will be introduced to various types of AC motors, the AC motor basics of voltage, speed, power factor, torque, motor starting methods, etc.
The Variable Frequency Drive Basics section of the course uses the variable frequency drive tutorial pictured here, to teach how VFD works.

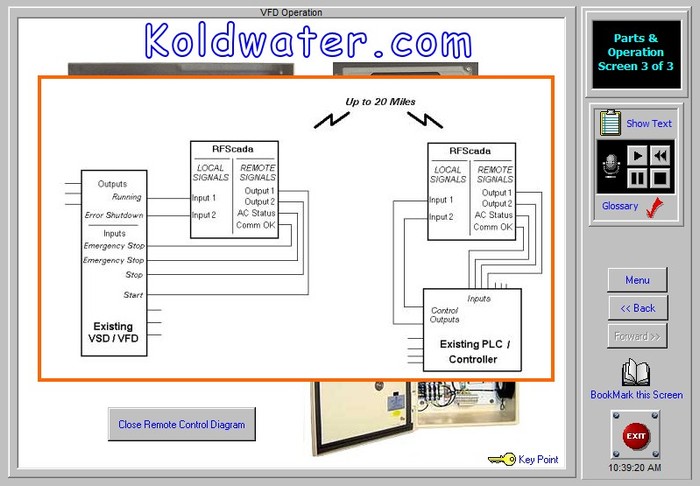

how vfd works

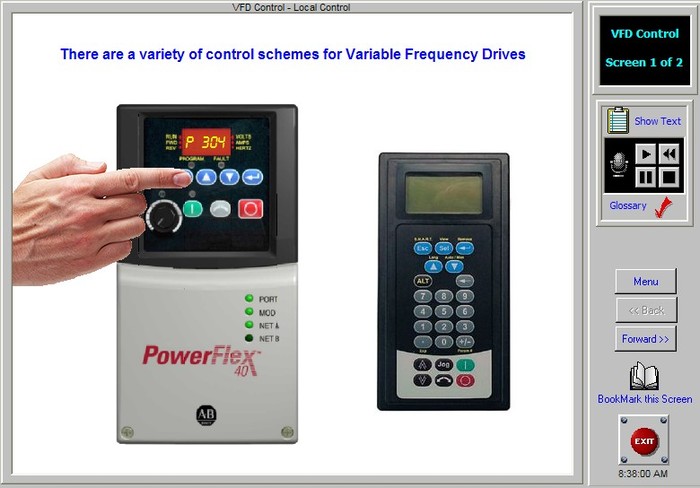

To help with the troubleshooting section and as a reference, the software has a quick easy access button for Powerflex VFD manual. Plus additional screens in the VFD Working Principle and Operation section that organize operational parameters to help you with startups. Better helps you make sense of all the VDF parameters.
VFD working principles explained with interactive pictorials.
Variable frequency drive theory is taught with interactive and animated pictorials. Like this screenshot about VFD dynamic braking from the VFD Control section.

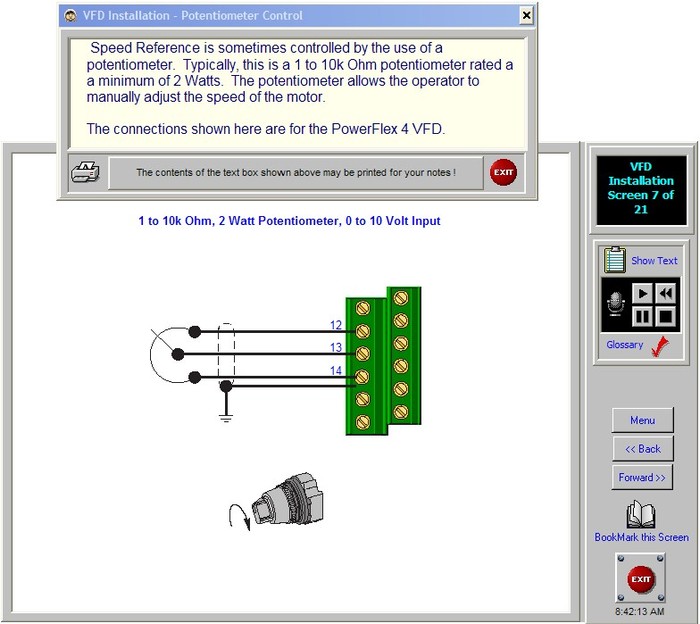

The variable frequency drive tutorial screenshot to the right show the VFD installation section even covers CE Compliance.

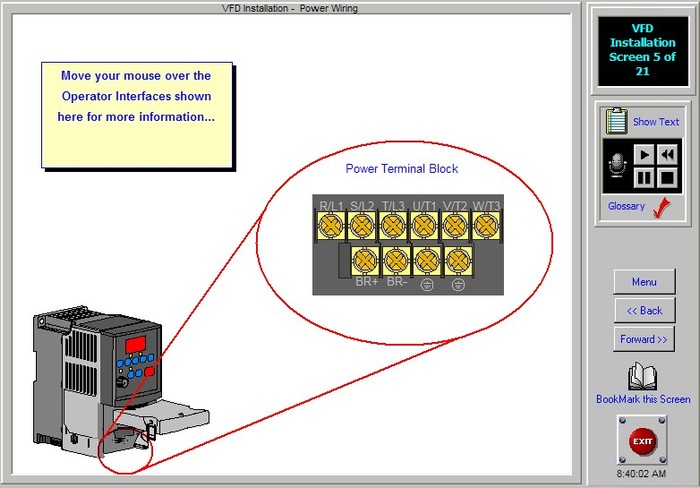

Hardwiring like VFD-cable termination is covered also in the extensive VFD installation section.
Motor Software Start is covered too.
Of course, as with all the Koldwater electrical controls training, there is the troubleshooting section. Troubleshooting VFD drives will offer an explanation of all their pesky fault codes.
